**We have a pack of some of the smaller parts**

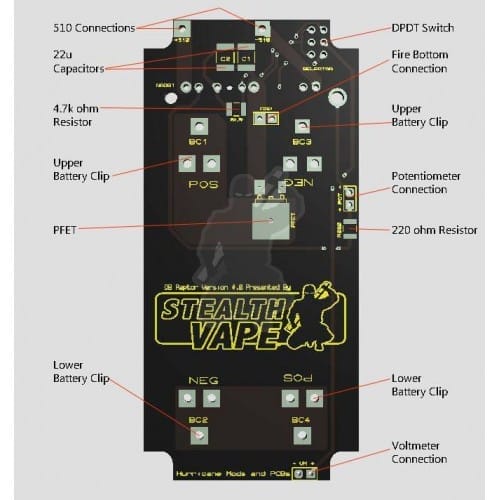

This printed circuit board is made for the Naos Raptor 120 watt module and fits in any Hammond 1590G-sized enclosure or larger. Building a raptor mod with this PCB fast and simple; just solder the components onto the board and drop the board into your enclosure.
Here are some links to components available from Mouser and Digikey
We’ll also have packs of components available in about a week.
In addition to the component lists or packs you’ll need the following components of your choice
- 18AWG wire
- 24AWG wire
- 510 connector
- Volt Meter
- Fire button

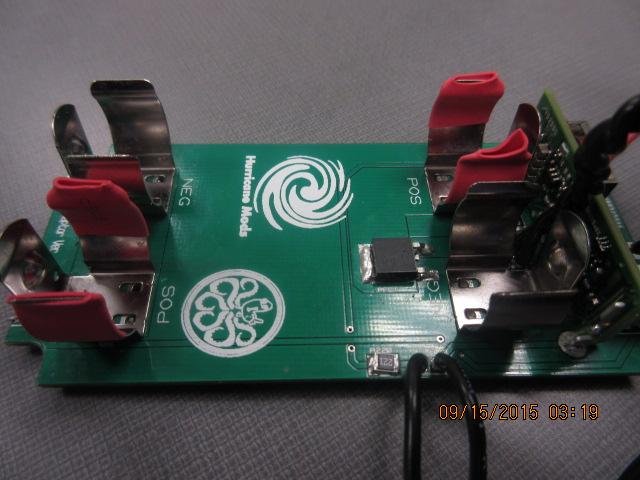

Lastly, Be sure to shrink wrap at least one of the inside arms of an upper and a lower battery clip to avoid any incidental contact. If you don’t do this, you will risk creating a short when installing batteries. No need to make sparks fly after all your hard work building your mod. I usually add red shrink wrap to the positive ends of the battery clips assembly to remind me which way to face my batteries, reverse polarity protection be damned.
