Flexi Fire Button PCB

£9.99 Inc VAT / £8.33 Excl VAT
UK VAT is not payable for international customers and will be removed at checkout

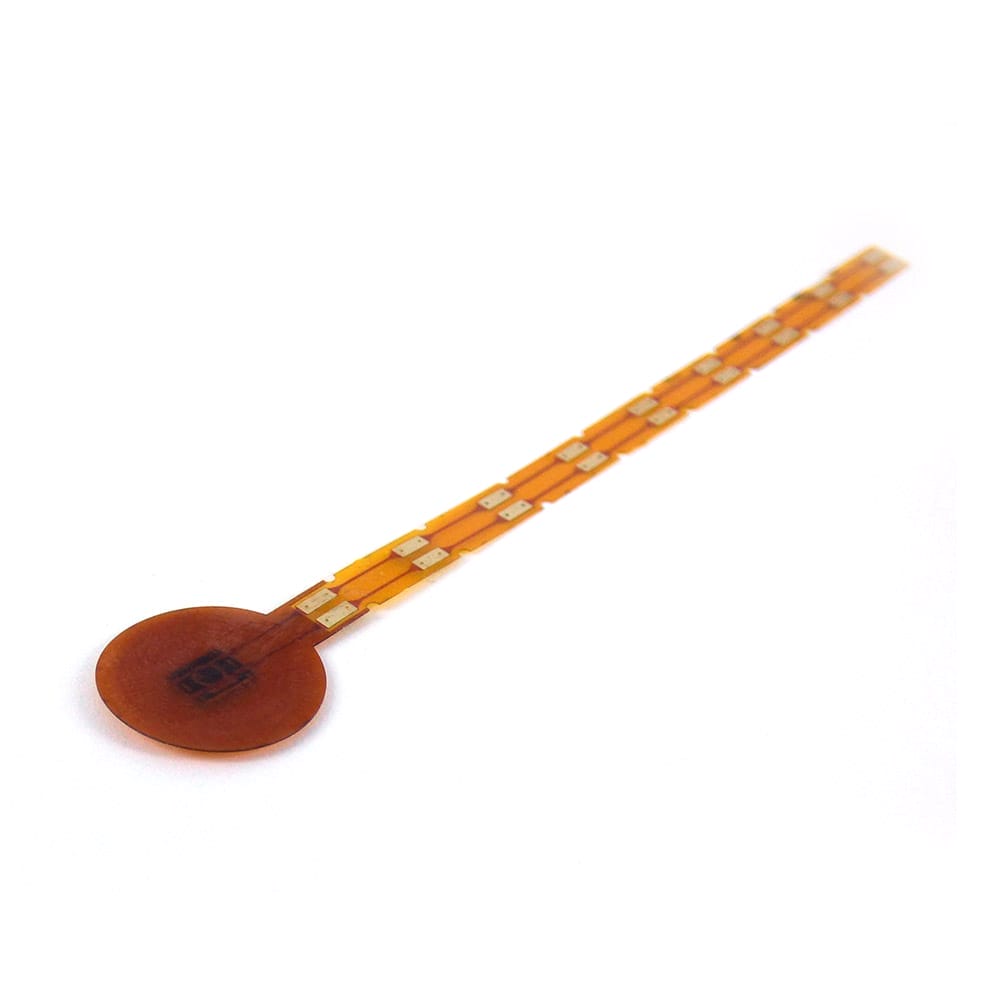

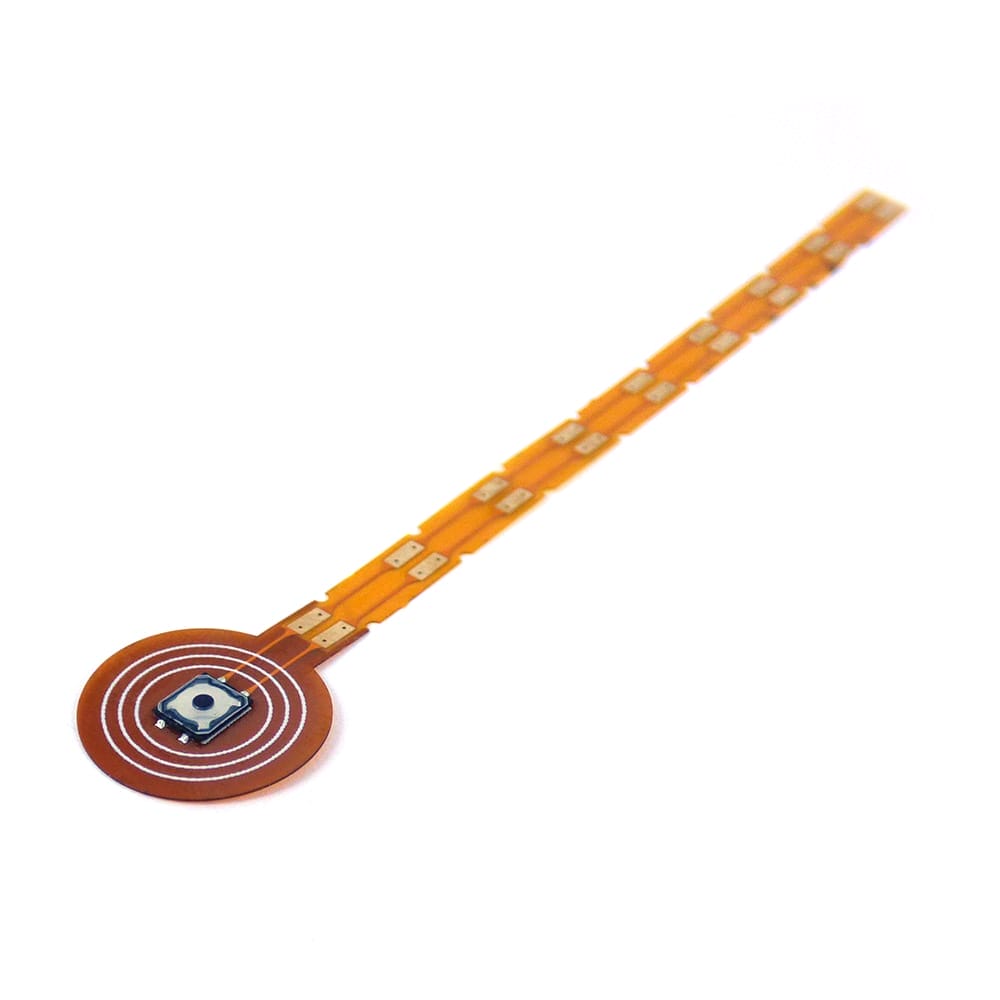

The solder pads are every 1cm and both sides so just trim to length and insulate any unused pads with kapton tape.

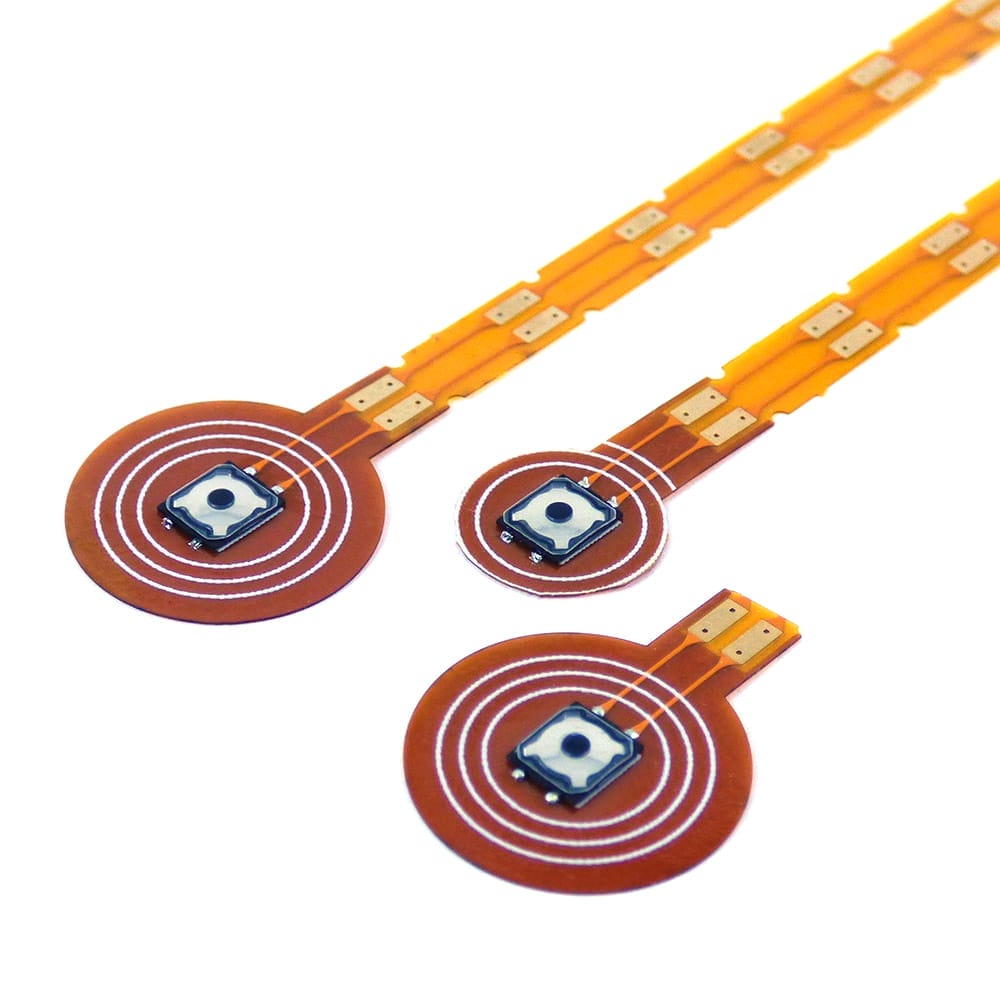

The white solder mask circles are guides if you want to trim the top down to size and are 12mm, 10mm and 8mm diameter.

If you trim the length leaving only the stiffener area and the first paid of solder pads then it’s a perfect fit as a replacement billetbox switch

Suggested use is to use a fine wire 24-28g for the final connection to the board or device. We like teflon insulated wire

CAD Files and more info in the main description below

In stock

Image showing payment methods supported, PayPal, Klarna, all credit cards

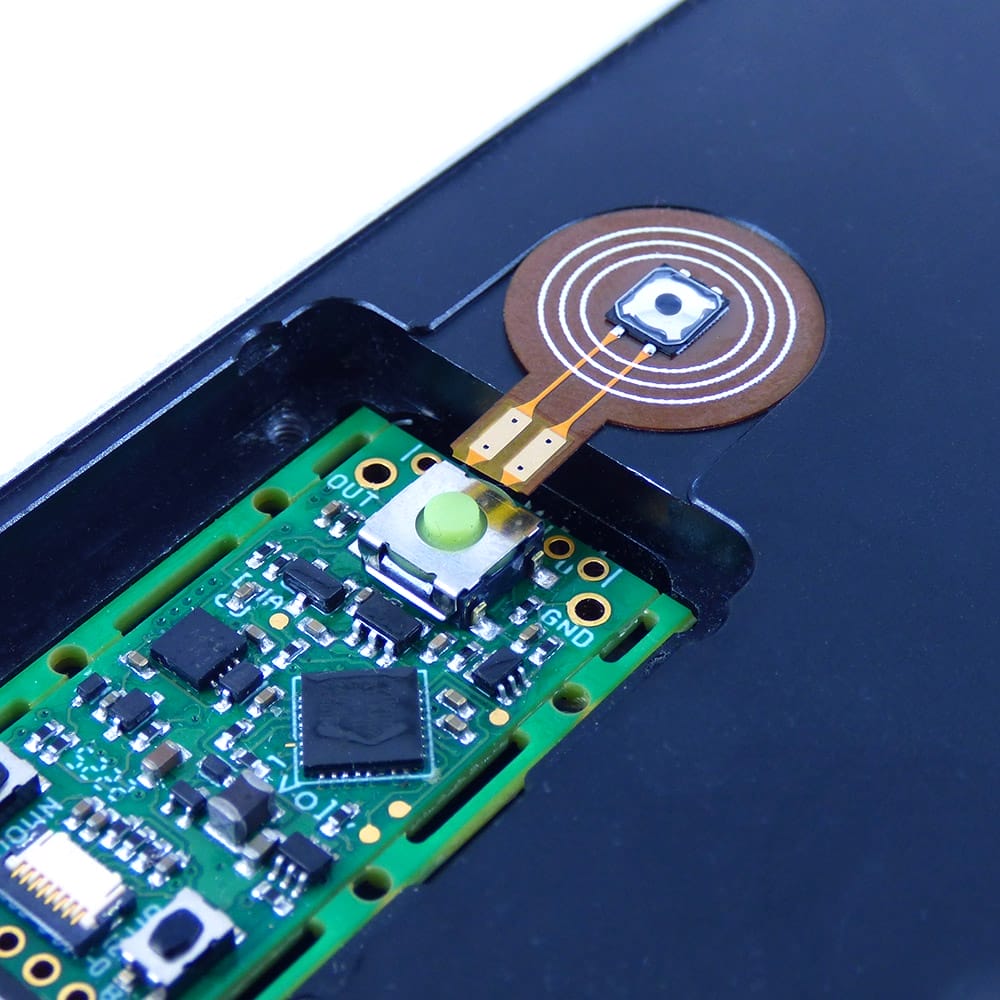

Flexi FFC Fire Button Billetbox replacement switch

Replacement Billetbox Fire Button / Fire Switch

To replace a broken or faulty Billetbox fire switch just trim down the ribbon leaving only the first set of solder pads.

Insulate the rear pads with kapton tape

Connect to the board using 24-28g round wire tails.

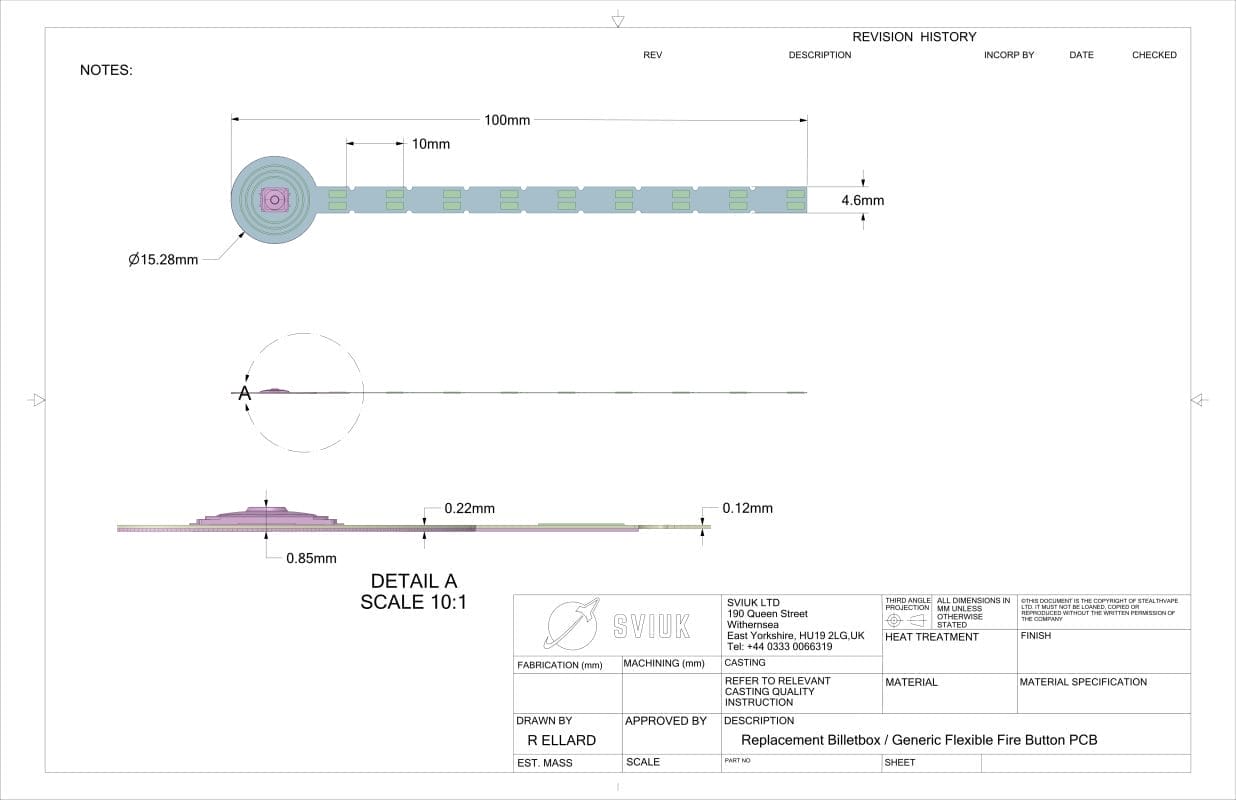

Replacement billetbox switch button technical drawing showing dimensions

CAD FILES

Weight 0.010 kg
Dimensions 10 × 2 × 1 cm
