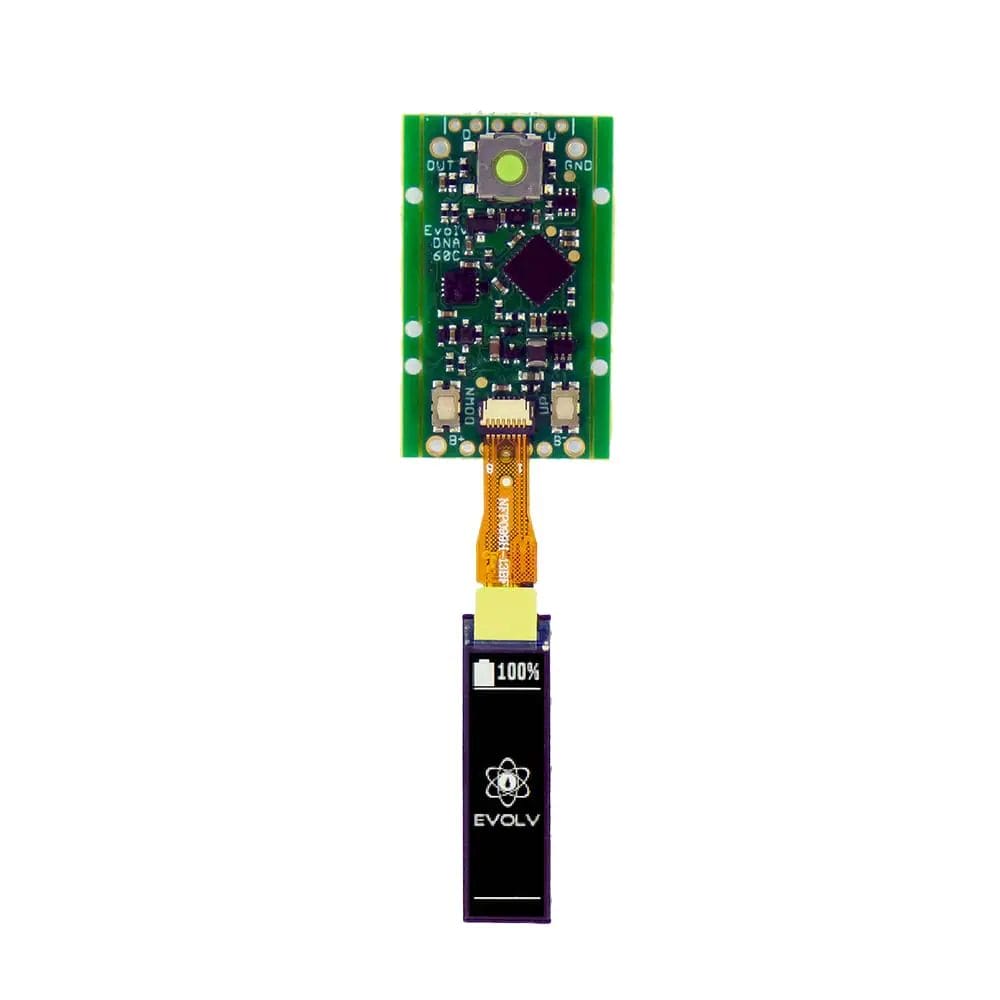

Evolv DNA60C Board & Screen

Evolv DNA60C Board & Colour TFT Screen

Glory be, we finally have an updated and long awaited replacement for the DNA60, the modders favourite board that revolutionized the vaping industry. It brings some new updates and features to the table, some of which vapers and modders have been requesting since time began. Evolv also ran a feedback and survey programme which indicated a pretty consistent desire for the following board updates:

• A colour TFT screen that displays all the information you need, such as the battery level, the wattage, the temperature, the resistance, and more. You can also customize the screen layout and colour scheme using EScribe.
• Replay function which allows you to save and replay your favourite puff. This way, you can enjoy the same flavour and vapor production every time, without having to adjust the settings manually. You can also share your replay profiles with other users via the EScribe software.
• A USB-C charge board (AVAILABLE SEPARATELY) that supports 2A fast charging, which can charge your device faster and more efficiently. USB-C ports also have a reversible connector, which makes plugging in the cable 50% less tedious. The USB port can also be used for firmware updates, diagnostics, and data logging via the EScribe software.
• Supports a single cell lithium polymer battery that can be either removable or built-in. The battery can be recharged via the USB port or an external charger.
• It can output from 1W to 60W of power, and handle resistances from 0.1ohm to 3ohm. It also supports temperature control for Ni200, Ti, SS, and custom wire types. You can set up different firing profiles for different coils materials using the EScribe software.

The Evolv DNA60C is a 60 watt power regulated digital switch-mode DC-DC converter for personal vaporizers and the successor to the industry shaping DNA60. As before it features Evolv’s patented Wattage Control, patented Temperature Protection, Preheat, Digital User Controls, Onboard Buttons and Synchronous Rectification for maximum battery life and minimal heat generation. In addition to this the board has been updated with a Colour TFT Screen, Replay and a 2a USBC Fast Charge Board (AVAILABLE SEPARATELY).

Evolv DNA60C CAD FILES:

Evolv DNA60C Board & Screen 3D STEP

1 file(s) 5.46 MB

Download

Evolv USBC Charge PCB (2a) DNA60C

1 file(s) 4.40 MB

Download

Evolv DNA60C TFT Screen

1 file(s) 117.90 KB

Download
