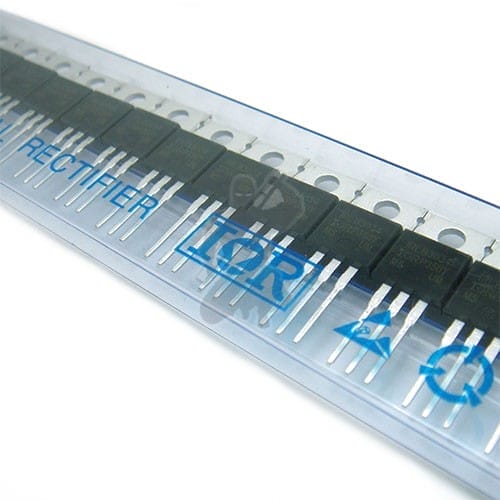

IRLB3034PbF N-Channel Mosfet

Name: IRLB3034PbF N-Channel Mosfet
Brand: Small Components
SKU: IRLB3034PbF-N-CHANNEL-MOSFET
Availability: InStock
Rating: 5.00 (1 reviews)

£2.99 Inc VAT / £2.49 Excl VAT
IOSS AVAILABLE FOR EU ORDERS UNDER £125 Excl VAT

IRLB3034PbF 195a 40v N-Channel Mosfet (And 15k Resistor)

Out of stock

Image showing payment methods supported, PayPal, Klarna, all credit cards

Description
Additional information

15k resistor included

FET Type	MOSFET N-Channel, Metal Oxide
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current – Continuous Drain (Id) @ 25°C	195A (Tc)
Rds On (Max) @ Id, Vgs	1.7 mOhm @ 195A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) @ Vgs	162nC @ 4.5V
Input Capacitance (Ciss) @ Vds	10315pF @ 25V
Power – Max	375W
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB

****Supplied with 1/4W 15k resistor****

Weight	0.010 kg
Dimensions	2 × 1 × 1 cm
intended_use	attribute:intended_use

IRLB3034PbF N-Channel Mosfet
