16mm Switch LED / NO LED

£2.63 Inc VAT / £2.21 Excl VAT
UK VAT is not payable for international customers and will be removed at checkout. As part of the IOSS, VAT will be collected during checkout on the total value of goods and shipping, and no further charges will be due on delivery, provided the order value is €150 or less.

  • 16mm cutout.
  • Gol plated, stainless steel, nickel plated and anodised black aluminium options
  • Raised, flush or domed actuators
  • Rated at 3A 250VAC/2A 36VDC.
  • The manufacturer suggests that at 8VDC this range of switches can handle up to 9amps.
  • The price shown is for one switch.
Image showing payment methods supported, PayPal, Klarna, all credit cards

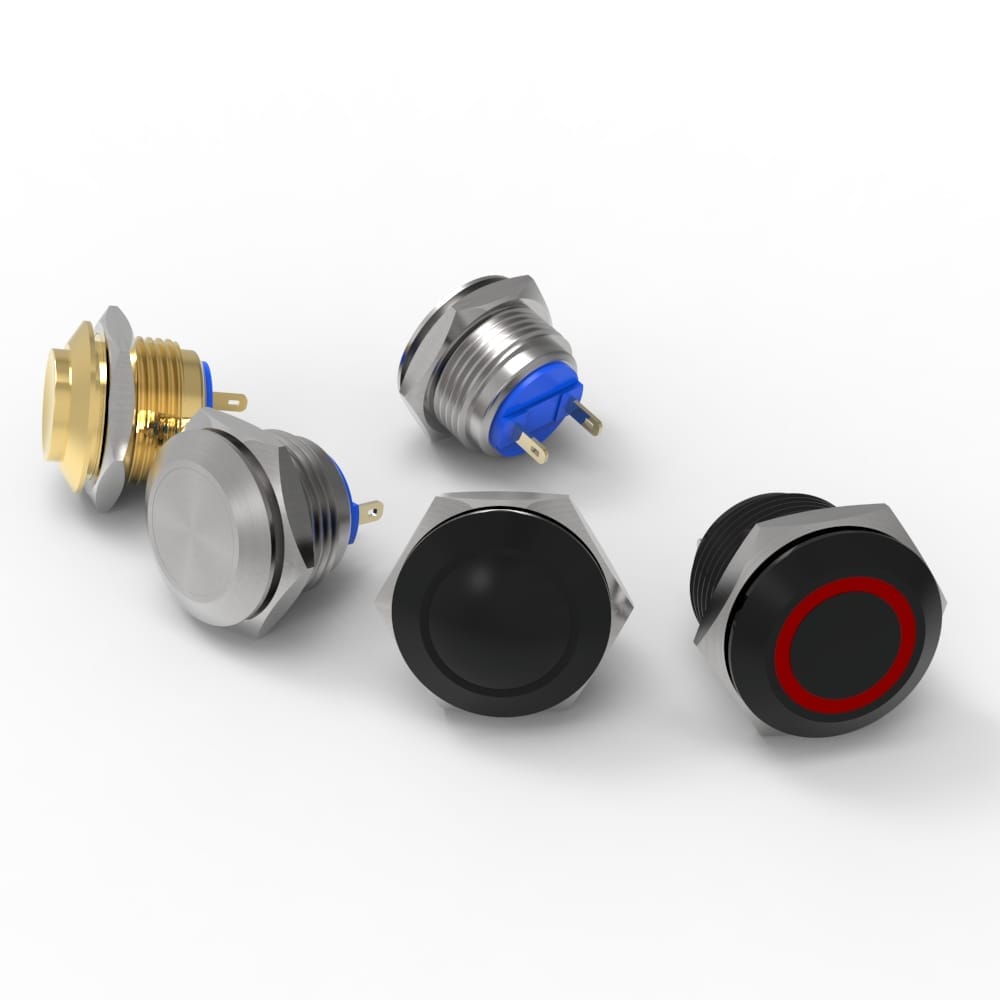

These switches are available in a range of materials such as stainless steel, gold or black anodised aluminium and have a 16mm cutout. Alternatively you can tap a hole with a M16x1mm thread.

Some have LED options and an illuminated bezel ring and actuator types are flat, raised / button shaped and also domed

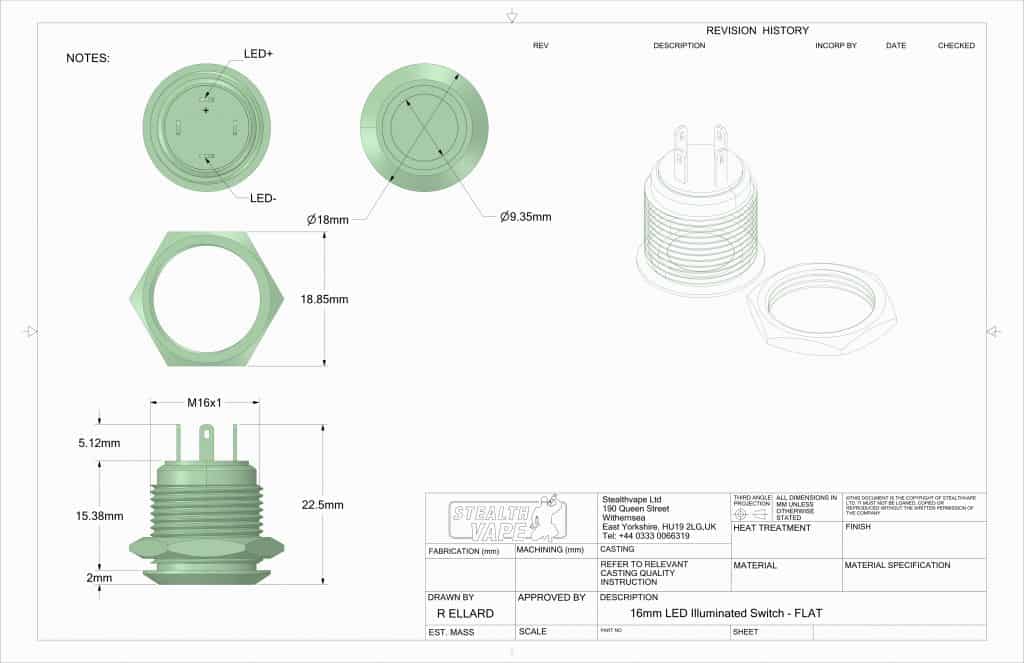

16mm anti vandal switch domed 16mm anti vandal switch flat 16mm anti vandal switch raised 16mm anti vandal switch flat LED

DOWNLOADS

Icon

16mm Switch DOME 3D CAD

1 file(s) 0.00 KB
Download
Icon

16mm Switch FLAT / FLUSH 3D CAD

1 file(s) 0.00 KB
Download
Icon

16mm Switch RAISED 3D CAD

1 file(s) 0.00 KB
Download
Icon

16mm Switch LED FLAT 3D CAD

1 file(s) 0.00 KB
Download
Weight N/A
Dimensions N/A
Actuator

Domed, Flush, Raised
Color

Black, Gold Plated, Nickel, Stainless Steel
LED

NO LED, Red, Blue, Green
