Source V3 M10 BF Squonk 510 Connector

£8.48 Inc VAT / £7.13 Excl VAT
UK VAT is not payable for international customers and will be removed at checkout. As part of the IOSS, VAT will be collected during checkout on the total value of goods and shipping, and no further charges will be due on delivery, provided the order value is €150 or less.

The Source V3 M10 Bottom Fed/ Squonk 510 Connector by Stealthvape. The best 510 for squonking on the market.

Featuring:

  • Stainless steel body – M10 x 1mm thread.
  • PEI / 0cP155 insulators.
  • Silver plated brass contacts.
  • Supplied with both a 10mm mech contact and a 8mm wrench contact hex nut.
  • Pre-tensioned Wave Spring – Force up to 7kg+ at full compression.

16mm and 22mm 510 plate options available.



Image showing payment methods supported, PayPal, Klarna, all credit cards

Introducing the Source V3 M10 Bottom Fed/ Squonk 510 Connector by Stealthvape.

We are proud to present to you what we consider to be the best 510 squonk connector on the market.

We constantly seek perfection, and have revised our popular squonk connector, arriving at the ultimate squonk / BF connector design.

The compact M10 body, PEI / OcP155 Insulation and powerful wave spring connection force make this the perfect choice for your DIY squonk mod build.

Available in both 16mm and 22mm plate sizes.



You will receive:

  • Main 510 squonk connector (Core, outer, M10 nut).
  • 10mm mech contact.
  • 8mm hex nut contact.

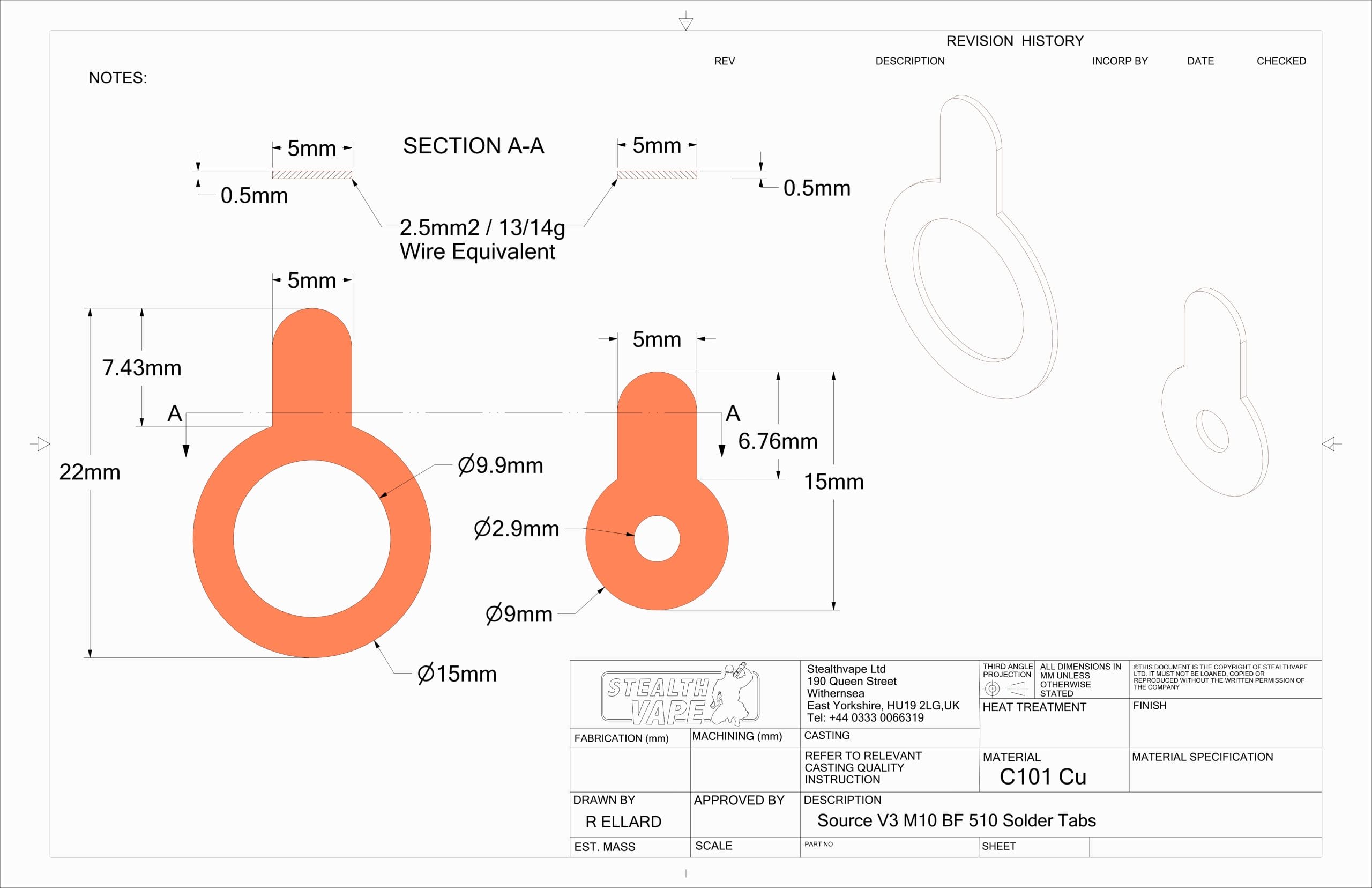

  • Large and small C101 copper solder tabs.



Features:

  • Stainless steel body – M10 x 1mm thread.
  • PEI / 0cP155 insulators.
  • Silver plated brass contacts.
  • Supplied with both a 10mm mech contact and a 8mm wrench contact hex nut.
  • Pre-tensioned Wave spring – Force up to 7kg+ at full compression.



Why not use our 510 Deployment Tool to aid installation?



M10 Source v3 squonk 510 connector wholesale options available for modders.



Please contact us at sales@stealthvape.co.uk to discuss your requirements.



Source V3 1

source v3 510

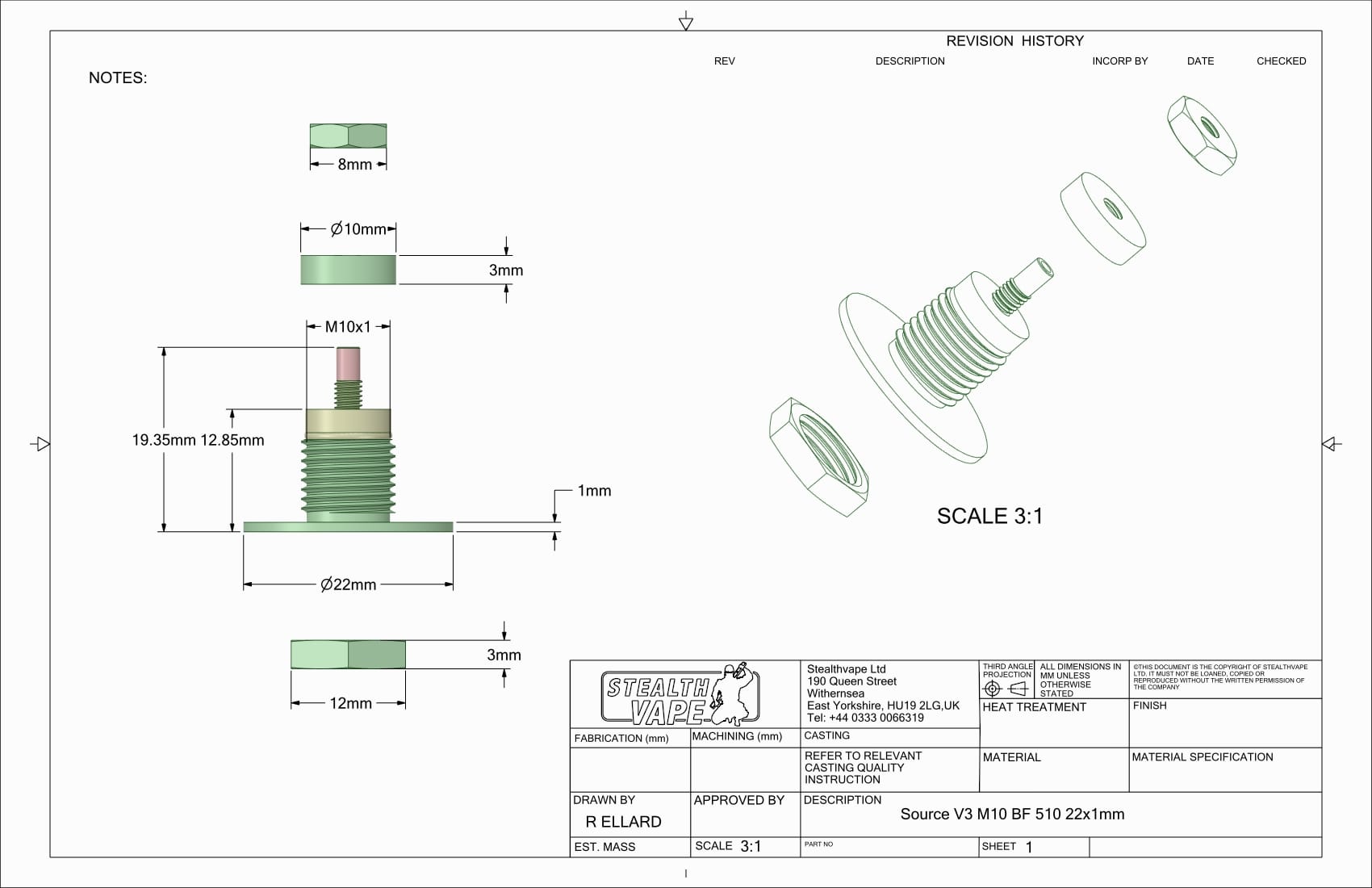

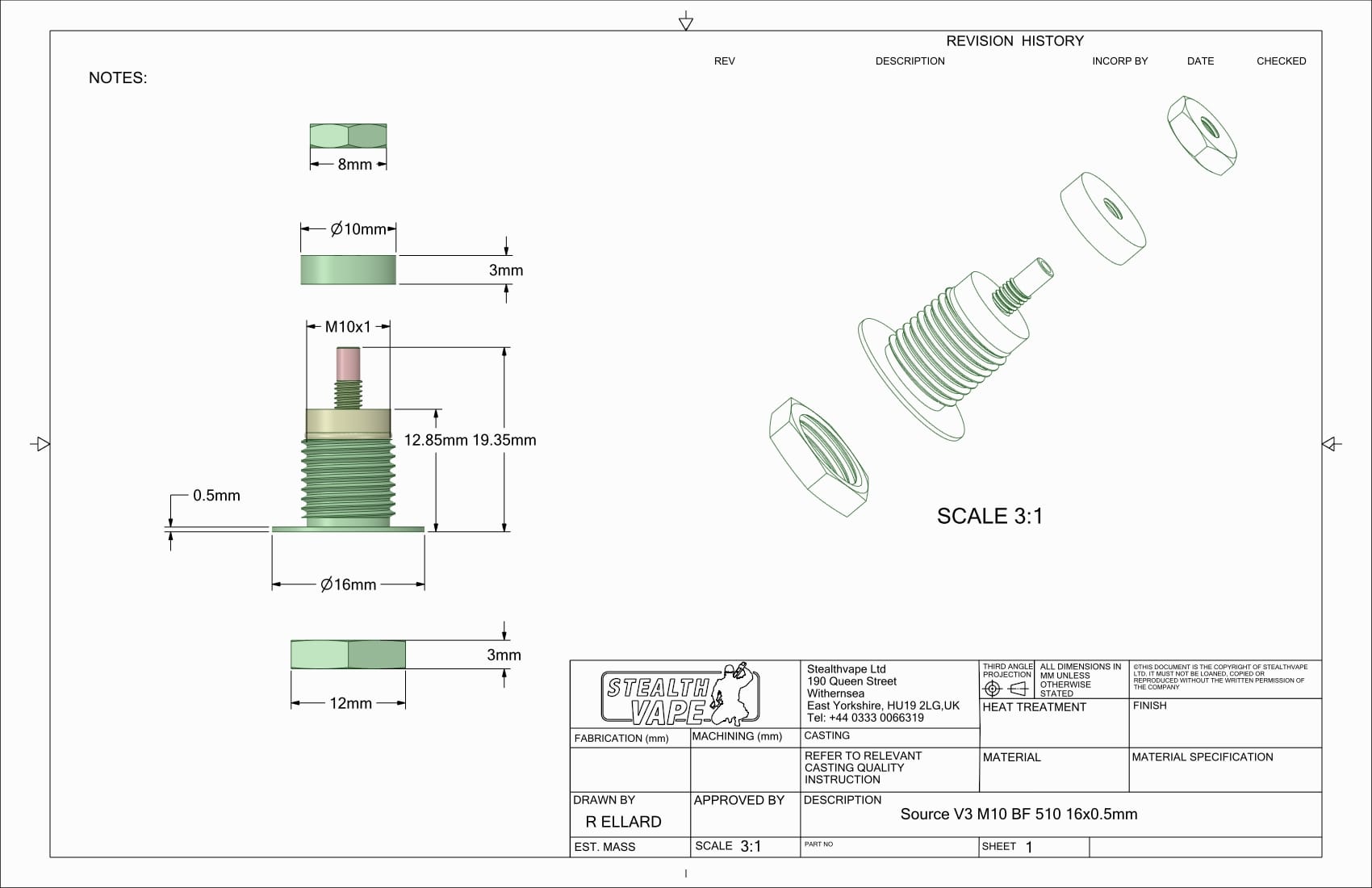

CAD FILES

The following warning applies to all mod parts on our website that are directly connected to a lithium battery

WARNING: These parts should only be used in devices containing batteries that have been approved for vaping use by the battery manufacturer and only in devices with a battery management system.

Weight N/A
Dimensions N/A
Source V3 M10 BF

16×0.5mm Plain, 22x1mm Plain

Brand

Stealthvape
