Source BF M12 V1 Squonk 510

£5.99 Inc VAT

This is the V1 of our popular 510 connector for squonk mods. Packed with many key features, such as a wide surface area positive contact and an integrated locking nut, this squonk 510 is ideal for DIY squonk mod builds.

Featuring:

  • 16×0.5mm or 22x1mm top.
  • Food grade 304 (UNS S30400) stainless steel centre pin.
  • Spring force >20N / 2kg at full compression.
  • Threadless PTFE core for minimum friction on centre pin travel.
  • Two o-rings, one on the outer insulator, another on centre pin flange.
  • Threadless positive contact with flat contact area – 4.1mm x 6.8mm.
  • Integrated mechanical lock milled from PTFE.
  • Low profile top plate, 0.5mm thick.
  • Main thread and nut M12 x 1.1mm thick toothed negative solder lug.

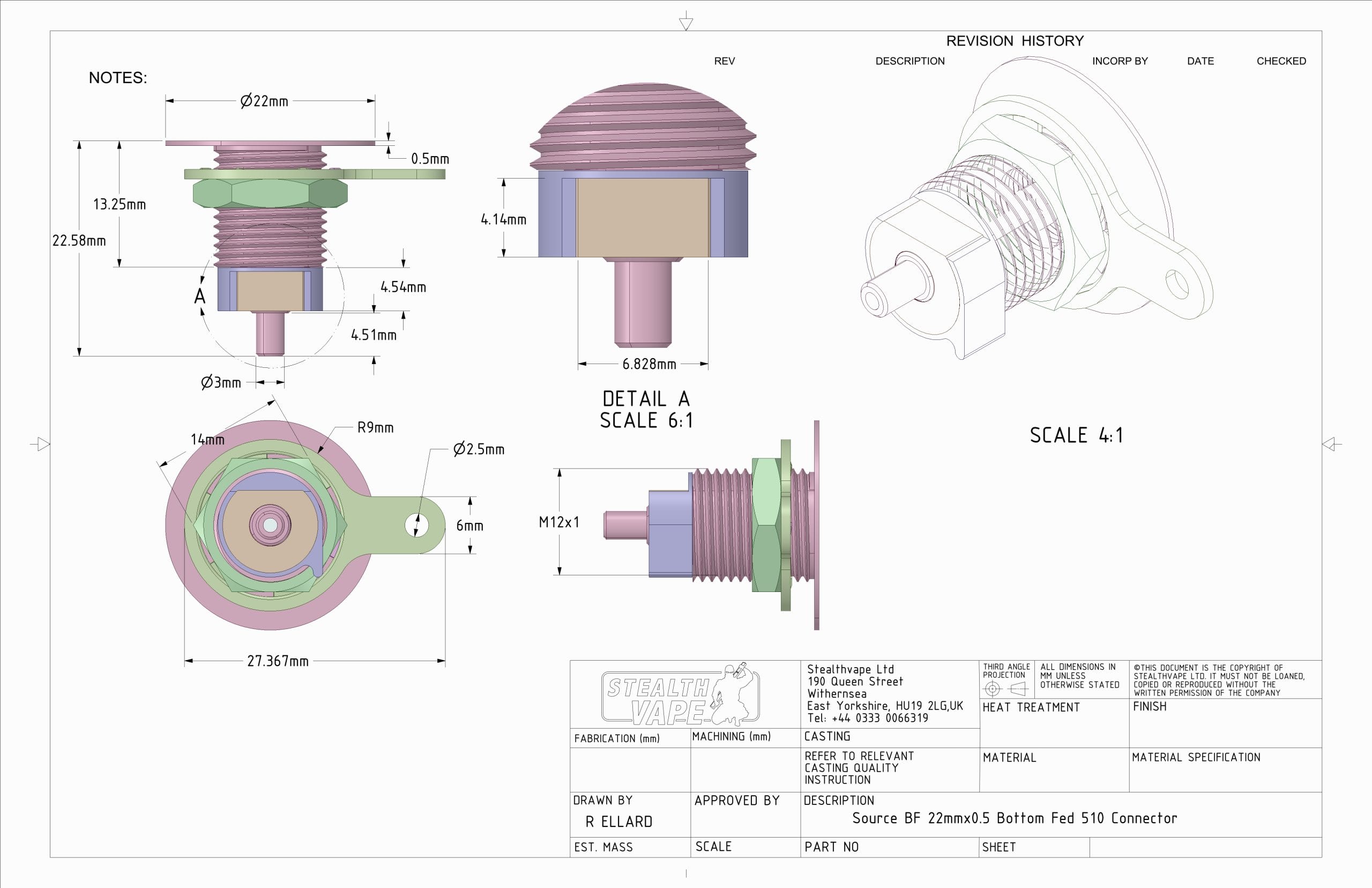

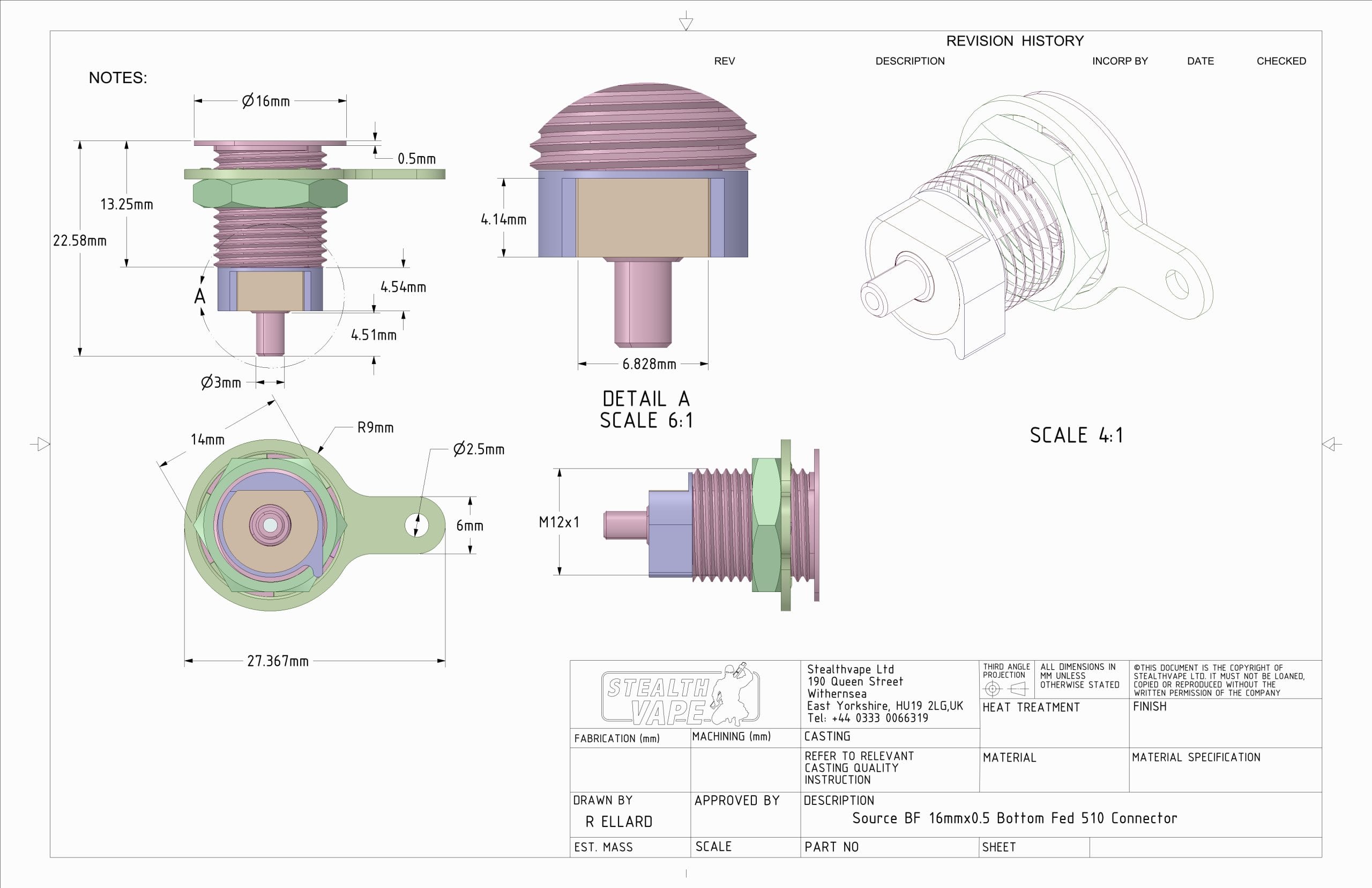

Available as 16 x 0.5mm or 22 x 1mm

Discount per Quantity

Quantity 10-49 50-99 100-499 500+
Price £5.39 £5.09 £4.79 £4.19
Clear
SKU: SOURCE-BF-510-v1 Categories: , Tags: , , ,
