Guide to Replacement DNA Screens

dna screen replacement
choosing the right DNA screen replacement

Choosing the correct replacement DNA screen can be a bit of a faff. Nowhere near as tricky as patting your head whilst rubbing your tummy, but there’s definitely a few things you need to be aware of.

Whilst the newer Evolv boards ( don’t call them DNA chips, you’ll be barred) share the same screens, some of the older DNA boards can have some confusing options. There’s DNA 60 small screen and large screen choices. Then there’s DNA 40 large screens and small screens. There’s DNA 30’s, DNA 75’s, 200’s and more. Working out which screen is compatible with which board can be a nightmare if you’re noob or simply not paying that much attention.

Trust me. I’ve  bought the wrong screen twice.

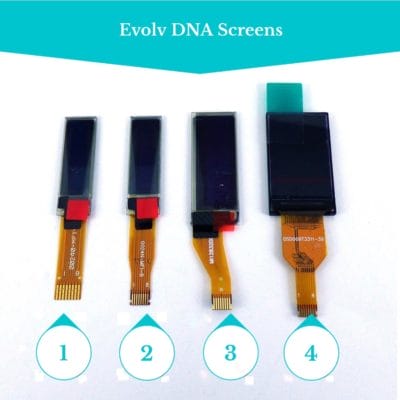

DNA Replacement Screens: A Visual

Here you can see the types of DNA replacement screens available. Not many, but enough to befuddle the mind of the modder. Let’s look at each one one in turn, find out what they are and which screen is the right one for your mod.

The screens:
  1. DNA 20 / 25 / 30 / 40 Small Screen*
  2. DNA 60 Small Screen **
  3. DNA 40 large / 60 large*** / 75 / 200 / 250
  4. DNA 75C /250C

* Flex cable soldered to board

**Must have small screen DNA60 firmware

***Must have large screen DNA60 firmware

confused yet?

I am.

So here’s a little table which might make things a bit clearer.

Replacement screen dna20 dna30 dna40
Small Soldered
Fits
DNA20
DNA25
DNA30
DNA40 Small
BUY!

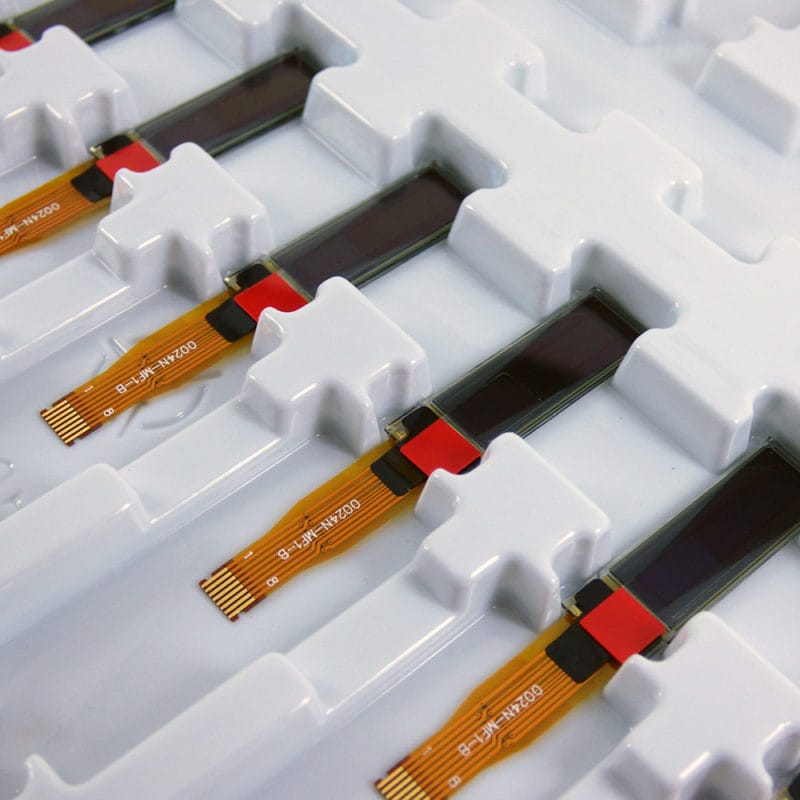

Replacement screen for Evolv DNA60 Small screen baords
ZIF SOCKET
Fits
DNA60 Small
BUY!
Replacement screen for dna40, dna60, dna75, dna200, dna250
LARGE ZIF SOCKET
Fits
DNA40 Large
DNA60 Large
DNA75
DNA200
DNA250
BUY!
Evolv DNA Screens
COLOUR SCREEN
Fits
DNA75C
DNA250C
BUY!
DNA Screen Sorted?

Hopefully the above has made things a little easier for you and things are now a little less confuddling.

As always, our mission is to make mod making as simple as it can be, and as such we’ve provided a load of files which may be of use in our awesome site Downloads section here.

Our selection of DNA boards can be found here, replacement screens can be located here and our epic board mounting kits are to be found here.

Be sure to utilise Escribe to keep your firmware fresh, but for those seeking early service packs or wishing to tinker further, check out the Evolv Forum thread here.

Be sure to follow our social media for Evolv news as we get it, and why not join our “Approved Modders” group on Facebook for build tips, hints and advice?

We’re here to help if we can.
